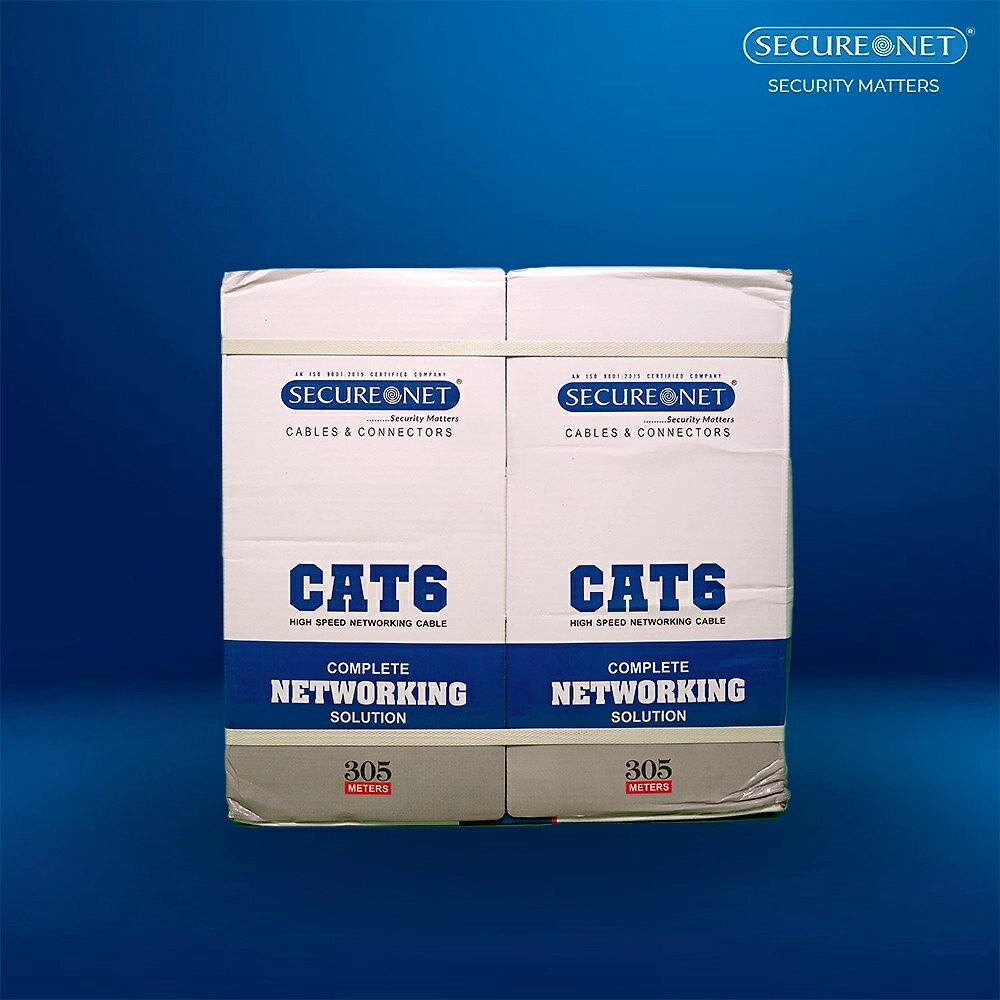

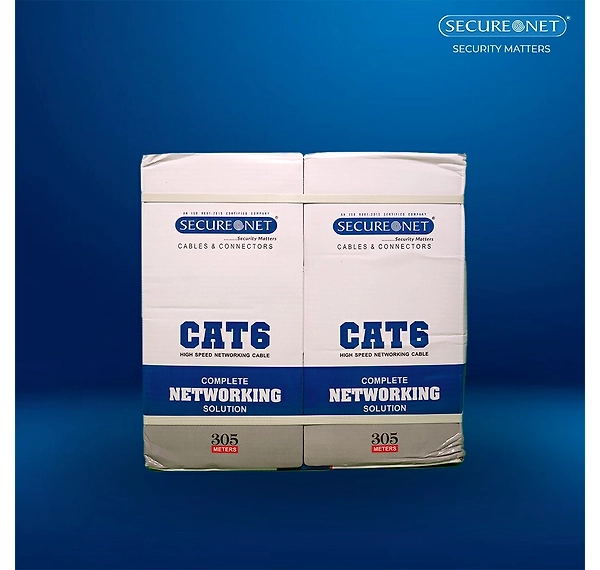

S-305 DOUBLE JACKET (CAT 6e)

SKU:S-305

  • Product not available

In Stock
8999.00
8999.00

Inclusive of all taxes

Please select seller to proceed:

7 Sellers
View All Sellers
Price:

Inclusive of all taxes

You Save: 0. Discount 0%

-
+

4 Pairs Unshielded Twist Pair (UTP) Cable

  • Conductor Metal: Solid Bare Copper
  • Color Code: BLACK
  • Conductor Diameter: 23AWG
  • Insulation Diameter: 0.970mm Nominal
  • Insulation Material: PE
  • Jacket Material: PVC
  • Cable Diameter: 6mm Nominal
  • PE Central Cross Separator

Why You Should Buy From India IT Mall?

India IT Mall is an initiative of FAIITA (Federation of All India IT Associations) is a community comprising of 100+ district and state federations with more than 25,000 IT retailers, wholesalers, system integrators, and solution providers across the entire country.

Largest Inventory Nationwide

Closest to You, Wherever You Are

Personalized Service Guaranteed

Lightning-Fast Delivery

Exclusive Brands, Unbeatable Prices

Supporting Local Communities

TECHNICAL DETAILS

  • Mutual Capacitance: 5.6nf/100m
  • Nominal Characteristic
  • Impedance: 100+-15%
  • Nominal Velocity of Propagation: 69%
  • Characteristic Impedance: 100 + 15
  • Conductor Resistance: <9.38/100m
  • Mutual Capacitance: <5.6nF/100
  • Resistance Unbalance: 5%
  • Max Capacitance Unbalance: 330pF/100m
  • Bending Radius: < 4 x Cable Diameter at – 20° +- 1°C
  • Delay Skew: <45nS
  • Pulling Force: 11.5KG
  • Temperature Range: -20°C to 70°C


BULLET POINT

1- FIRE RETARDANT

2- EASY TO TRANSPORT WOODEN REAL

3- BEST QUALITY LED COATING FOR ALL WEATHER CONDITIONS.

4- DOUBLE JACKET COATING FOR EXTRA STRENTH.

5- UL CERTIFIED

6- REGISTER ON GEM

7- OUTDOOR CAT6 CABLE BECOZ SECURITY MATTERS

8- CAT6 CABLE BECOZ SECURITY MATTERS
